The most compact scanner reliably handles mixed batches and large sizes
The fi-7480 is ideal for office use as the smallest A3-capable scanner of its class(1). Its wide range feeding ability includes regular A8 to A3 sizes, as well as folded A2 documents and plastic cards. Additionally, no burdensome pre-sorting is required with mixed batch scanning.
The fi-7480 can efficiently scan a large amount of documents. The ADF paper chute (feeder) can accommodate 100 sheets (A4 sheet, landscape, 80 g/m2) and additional papers can be added while scanning. Furthermore, it also includes several functions to ensure reliable scanning.
The PaperStream IP scanner driver, which supports TWAIN/ISIS, avoids the inconvenience of fine adjustments to the settings for OCR processes. It automatically converts the images into exceptionally clean images, accelerating OCR even when scanning wrinkled or soiled documents, or documents with a background pattern. With an intuitive interface, PaperStream Capture effectively and efficiently allows you to feed information into your organization's workflow through various capture features during batch scanning.
The PaperStream IP driver takes the work out of image cleanup when scanning invoices, ID cards, receipts, forms, or any other day to day paperwork. PaperStream IP automatically improves the image quality, removes unwanted backgrounds, and optimizes your scanned images for optical character recognition. It is fast and easy to use. Our latest innovation, Assisted Scan, allows users to replace poor images by visually selecting the image they lack rather than learning driver settings. If driver settings need to be adjusted for rare and difficult documents, our preview function allows scan operators to see their adjustments in real-time without time consuming re-scans. PaperStream IP works with both ISIS and TWAIN applications.
PaperStream Capture makes advanced capture with Ricoh scanners easier than before. PaperStream Capture has a streamlined User Interface to reduce training time and increase productivity. Not only have we provided users with the most common profiles used by customers—black and white, color, and auto-color—new profiles are easily created or modified through a wizard. We have organized the release screen so that batches can easily be suspended or continued. PaperStream Capture is also integrated with PaperStream IP’s assisted scanning for visual cleanup of documents. The reading of barcodes and patch codes make document separation easy, improving document organization.
A high-quality, front end scanning software, PaperStream Capture Pro enhances fi Series’ superior scanning abilities with an improved feature set that includes options for high level data extraction and indexing, the import of electronic images, and support for multi-station licensing. PaperStream Capture Pro offers cost-effective improvement tools such as PaperStream IP for optimized image capture. As a distributed capture model, this scanner software captures your data without added costs and resources. This solution benefits organizations and departments that require an efficient yet easy way to convert paper documents into a digital file for high level data indexing and extraction. Improve records management processes and drive down business expenses with PaperStream Capture Pro.
The optional imprinter unit prints identification markers like dates, alphanumeric codes and symbols on reverse side of the original document. This makes it easier to locate the originals of scanned document when you need to reference them.
|Image Sensor Type||Color CCD (Charge Coupled Device) x 2 (front x 1, back x 1)|
|Light Source||White LED Array x 4 (front s, back x2)|
|Multifeed Detection||Ultrasonic multi-feed detection sensor x 1, Paper detection sensor|
|Optical Resolution||600 dpi|
|Output Format(1)||Color (24-bit)||50 to 600 dpi
(adjustable by 1 dpi increments), 1,200 dpi (driver)(2)
|Output Color Depth||Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit|
|Internal Video Processing||4,096 levels (12-bit)|
|Image Processing Functions||Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, De-Screen, Emphasis, Halftone, Dropout color (None /Red /Green /Blue /White / Saturation /Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Cropping, Dither, Static threshold|
|Simplex: 80 ppm, Duplex: 160 ipm
(200 dpi / 300 dpi)
|Simplex: 65 ppm, Duplex: 130 ipm
(200 dpi / 300 dpi)
|Paper chute capacity (A4 Landscape)(6)||100 Sheets (A4: 80 g/m² or 20 lb.)|
|Expected Daily Duty Cycle||24,000 Pages|
|Document Size||Minimum||50.8 mm x 69 mm (2 in. x 2.72 in.)|
|Maximum(7)||304.8 mm x 431.8 mm (12 in. x 17 in.)|
|Long page scanning(8)||304.8 mm x 5,588 mm (12 in. x 220 in. )|
|Letter||27 to 413 g/m² (7.2 to 110 lb.)|
|A8 sheets||127 to 209 g/m² (34 to 56 lb.)|
|Card||Up to 1.4 mm (10)|
|Interface||USB 3.0 / USB 2.0 / USB 1.1 (backward compatible)|
|Minimum PC Specification||PaperStream IP i5 2.5 MHz Processor, 4 GB RAM|
|Power Requirements||100 to 240 VAC ± 10 %|
|Power Consumption||Operating mode: 43 W or less, Sleep mode: 1.4 W or less, Auto Standby(OFF) mode: Less than 0.35 W|

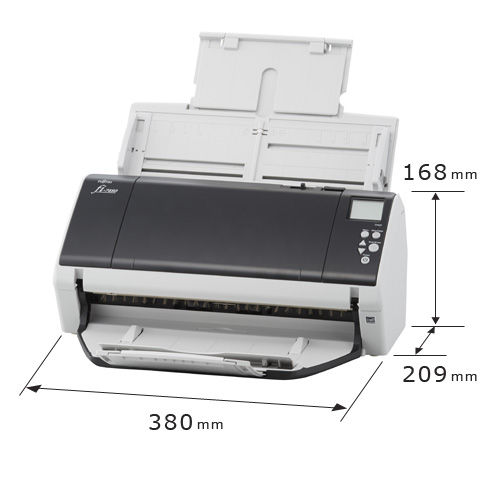

|Dimensions (WxDxH)(11)||380 mm x 209 mm x 168 mm (14.96 in. x 8.23 in. x 6.61 in.)|
|Weight||7.6 kg (16 lb.) or less|
|Environmental Compatibility||ENERGY STAR® / RoHS|
|Operating Environment||Temperature||5 °C to 35 °C (41 °F to 95 °F )|
|Relative Humidity||20 % - 80 % (non-condensing)|
|Included Items||ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM|
|Included Software / Drivers||PaperStream IP (TWAIN/ISIS), WIA Driver, Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series(12), 2D Barcode for PaperStream(12), Scan to Microsoft SharePoint(12), ABBYY FineReader for ScanSnap(12), Scanner Central Admin Agent|
|Options||Post Imprinter (Back-side), PaperStream Capture Pro|
|Supported Operating Systems||Windows® 11, Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Linux (Ubuntu)|
Assists document management by printing numbers, Roman characters and codes on original documents after they have been scanned. Part number: PA03710-D401
