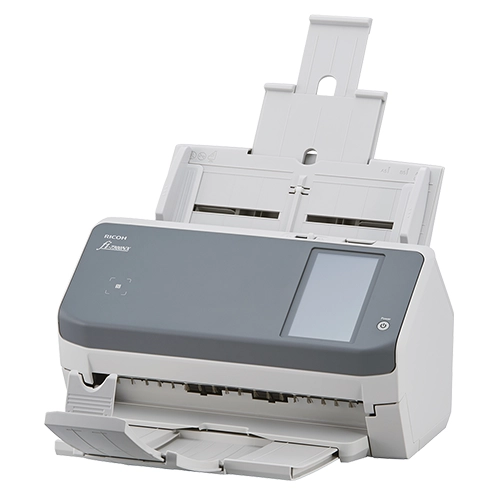

The fi-7300NX boasts a speed of 60 ppm/120 ipm (200/300 dpi) for scanning A4 portraits, loads up to 80 sheets at a time.
Users can begin scanning from the scanner’s touch screen or from various applications on smart devices to suit all business needs. Not only is direct data transfer to client-unique web systems possible with SDK use, but secure data transfer is also possible with strong data encryption.

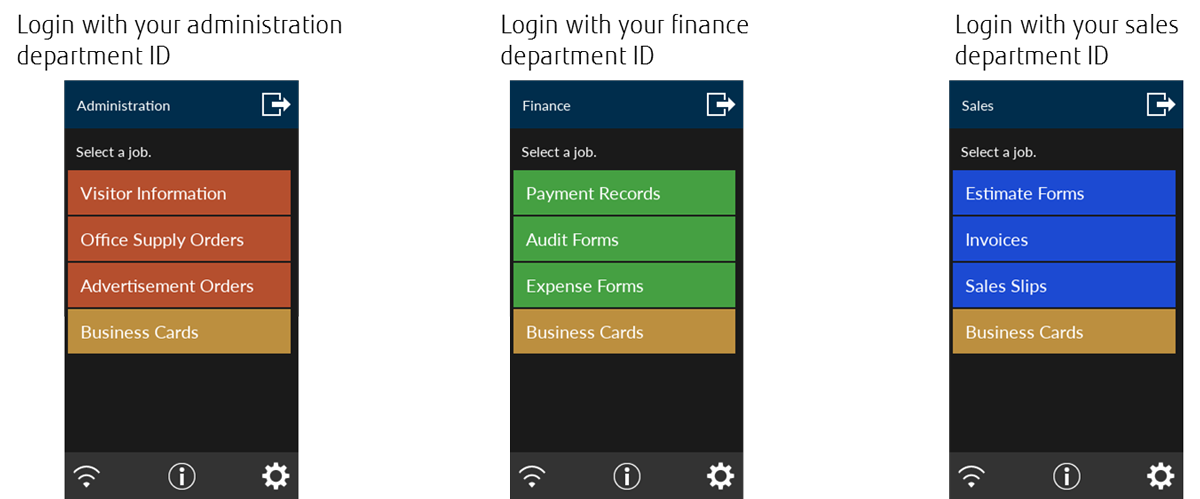

Users can scan and save documents without any requirement for a local computer. They can simply login to the scanner using user authentication and select a job from their personalized job menus on the fi-7300NX’s touch screen. Customized job menus ensure efficient and secure decentralized data entry is possible for each user.

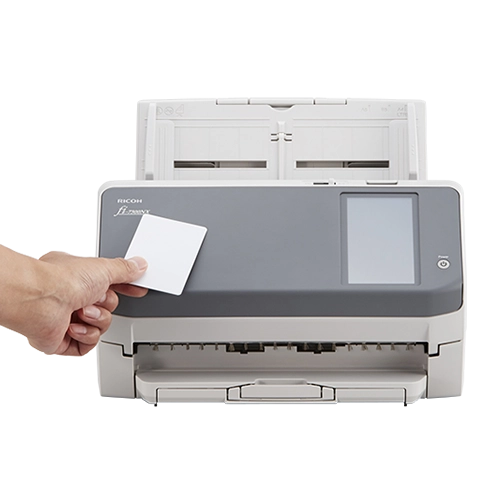

The fi-7300NX supports NFC (Type-A and Type-B) authentication and user authentication with username and password input on the touch screen. It is also possible for different job menus to be assigned to each scanner, and avoid any authentication processes.
With PaperStream NX Manager, users can scan from mobile or web applications opened up on smart devices or thin client terminals. Seamless integration into company systems enables use of a variety of devices for scanning operations.
The PaperStream NX Manager SDK is provided to enable integration with various client systems and applications. Developers can utilize suitable SDK for their clients who want to use their own systems.
An interface for development of web applications that carry out scanning functions. With the REST API, web applications can call on the fi-7300NX to scan paper documents.
An interface for development of applications that use the fi-7300NX’s authentication function. Not only can users link the scanner to NFC, but can also link the scanner with their currently used authentication server.
An interface for development of applications designed to link PaperStream NX Manager with various systems. With the Connector API, users can link to their business systems or OCR/document management software.
The user authentication function, job menu, and other scan settings are all centrally managed with PaperStream NX Manager and Scanner Central Admin. With the fi-7300NX’s server software, there is no need for the conventional single client computer to scanner environment and the system administrator to stand by the scanner. This reduces the total burden of installation*, expansion, operation, and management.
*Installation requires other tools such as fi-7300NX Rollout Tool and Network Setup Tool for fi-7300NX.
Powerful server software that extends the capabilities of your fi-7300NX scanner
The server software carries out user authentication, job management, image processing of scanned data, and data output for the fi-7300NX. Automatic sharing of authentication methods and job settings throughout all connected scanners can be done with PaperStream NX Manager, capable of managing up to 1,000 fi-7300NX scanners.
The software specializes in centralized management of multiple scanners, including batch updates of scanner settings and firmware, as well as monitoring of errors and consumables status. This is also capable of managing up to 1,000 scanners per server.
Inheriting the fi Series legacy of high-speed, consistent paper feeding, the fi-7300NX boasts a speed of 60 ppm/120 ipm for A4 size documents*1. Documents folded in half and carbon-copy sales slips are also an ease to scan with Manual Feed Mode.
*1 A4 size documents fed in vertically, 200/300 dpi.

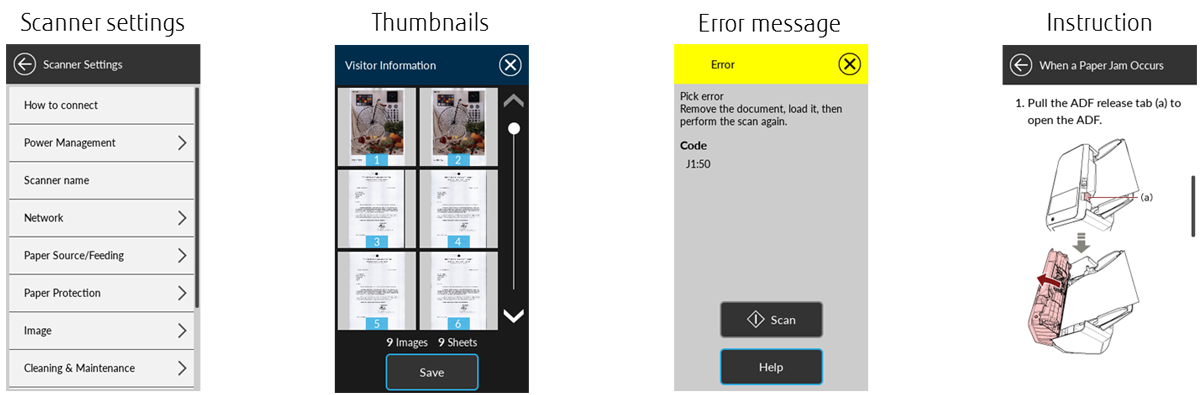

The touch screen enables users to perform operations intuitively, like scanning and data checking, with thumbnail reviews of scans. The screen also displays messages or instructions with illustrations so that users can handle errors themselves.
When scanning with computers, the fi-7300NX can be used with PaperStream IP, a specialized scanner driver for Ricoh image scanners, via Wi-Fi connection, wired network, and USB connection. Connection without need for the USB cable allows the scanner to be positioned wherever needed, to improve user productivity, reduce interruptions, and make more room for more frequently used equipment.
Both advanced driver and software, PaperStream IP and PaperStream Capture, enable users to fully enjoy simple scanning operations and high quality images, like our other Ricoh scanners.
|Scanner Type||ADF (Automatic Document Feeder), Duplex|
|Scanning Speed(1) (A4 Portrait)
|Simplex: 60 ppm (200/300 dpi)
Duplex: 120 ipm (200/300 dpi)
|Image Sensor Type||Color CCD x 2 (front x 1, back x 1)|
|Light Source||White LED Array x 2 (front x 1, back x 1)|
|Optical Resolution||600 dpi|
(Color / Grayscale / Monochrome)
|50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)(5)|
|Output Format||Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit|
|Background Colors||White / Black (selectable)|
|Document Size||Maximum(6)||216 x 355.6 mm (8.5 x 14 in.)|
|Minimum(7)||50.8 x 54 mm (2 x 2.1 in.)|
|Long Page Scanning(8)||5,588 mm (220 in.)|
|Paper Weight (Thickness)||Paper||27 to 413 g/m² (7.2 to 110 lb)(9)|
|Plastic Card||1.4 mm (0.055 in.) or less(10)|
|ADF Capacity(11)(12)||80 sheets (A4 80 g/m² or Letter 20 lb)|
|Expected Daily Duty Cycle(13)||9,000 sheets|
|Multifeed Detection||Overlap detection (Ultrasonic sensor), Length detection|
|Paper Protection||Lag detection, Sound detection (iSOP)(14)|
|Display||4.3 in. TFT color touch screen|
|Authentication||Keyboard (on touch screen), NFC|
|Interface||USB||USB 3.1 Gen1 / USB 3.0 / USB 2.0 / USB 1.1|
|Ethernet||10BASE-T, 100BASE-TX, 1000BASE-T|
Frequency band: 2.4 GHz (15)
|Network Protocols||IPv4(16), TCP, UDP, ICMP, DHCP, HTTP/HTTPS, DNS|
|Power Requirements||AC 100 to 240 V ±10 %|
|Power Consumption(17)||Operating||42 W or less|
|Power Saving||2.4 W or less|
|Power Off||0.35 W or less|
|Operating Environment||Temperature||5 to 35 °C (41 to 95 °F)|
|Relative Humidity||20 to 80% (Non-condensing)|
|Environmental Compliance||ENERGY STAR®, RoHS|
|Dimensions(18) (W x D x H)||300 x 202 x 170 mm (11.8 x 7.9 x 6.6 in.)|
|Weight||4.9 kg (10.8 lb) or less|
|Supported Operating System||Windows® 10 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2016 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server®2008 R2 (64-bit)|
|Included Software / Drivers||PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver(19), PaperStream Capture, ScanSnap Manager for fi Series(20), Software Operation Panel, Network Setup Tool, ABBYY FineReader for ScanSnap™(20), Scanner Central Admin|
|Image Processing Functions||Error diffusion, Dither|
|Included Items||Chuter unit, AC cable, AC adapter, USB cable, Setup DVD-ROM|
1 Year Standard Warranty
Advance Exchange - Next Business Day.
Included in the price of a new scanner product.
Valid for 1 year from date of purchase.
3 Year Extended Warranty
Advance Exchange - Next Business Day.
Extends the 1 Year Standard Warranty to 3 Years.
Includes replacement of defective product and two-way shipping costs.
3 Year Bronze Service Plan
Onsite Service - 8 Hour Response + 8 Hour Fix.
Extends the 1 Year Standard Warranty to a 3 Year Service Plan which upgrades the service type to Onsite Service 8+8.
Includes spare parts, labour and travel costs.
Pack of 72 F1 Cleaning Wipes for Ricoh scanners. Scanner Cleaning wipes Impregnated with manufacturer approved F1 cleaning fluid. Suitable to clean glass, plastics, rubbers and metals in Ricoh Document scanners. SKU: CON-CLE-W72

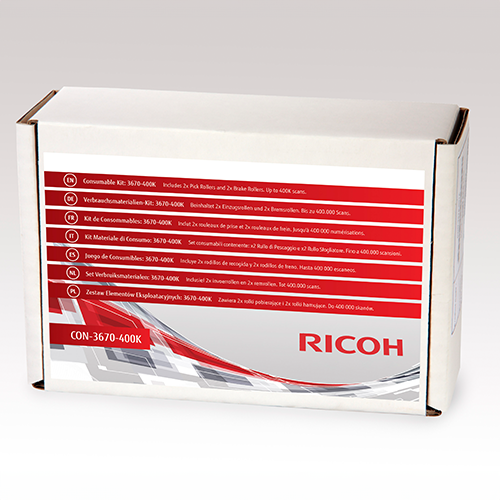

Includes 2x Pick Rollers and 2x Brake Rollers. Estimated Life: Up to 400K scans. SKU: CON-3670-400K
Transparent sleeves for scanning A3, small or damaged documents Enables damaged documents and receipts to be scanned as well as A3 with image stitching function. SKU: PA03360-0013
