RICOH PJ UHL3660 UST Laser Projector

Highly adaptable 4K quality

The RICOH PJ UHL3660 UST Laser Projector delivers a premium viewing experience in every environment.

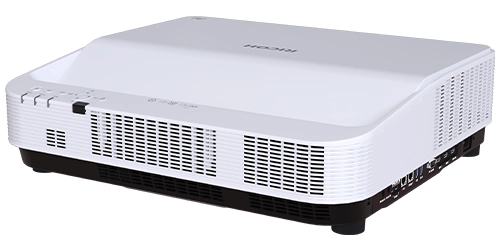

Ricoh ultra short throw laser projector side view



Where space is limited, you need to project in every environment and you want a premium viewing experience, The RICOH PJ UHL3660 UST Laser Projector delivers it all, and more.

With 6,500 lumen brightness, 4K Ultra HD resolution and unique OptiBright* technology it produces visibly sharper, clearer images with rich colours for enhanced realism, even in brightly lit spaces.

It can be mounted in multiple ways, including portrait and 360-degree rotation to achieve a range of projection effects. It also incorporates a host of keystone and geometric image correction features to deal with uneven, angled or unusual projection surfaces and by using its IP address, it can be operated wirelessly from a PC or smartphone. Very smart.

Need to project somewhere with limited space? That’s no problem for this projector. It offers an incredible 0.24 Ultra Short Throw ratio, creating an 85-inch image from just 1cm away (from the edge of unit) – and a maximum projection size of 160 inches. Capable of operating constantly in temperatures up to 45 degrees Celsius and with its IP6X dust-proof design, this robust projector is built to handle hot or dusty environments such as entertainment and covered outdoor venues. With its range of safety functions, including eye-safety shut-off, it can be used in spaces such as stores, conference halls and museums - anywhere the public is in close proximity.

Efficiency and economy are also core to the projector’s design. Ownership and replacement costs are reduced thanks to an extra-long 40,000-hour operational lifespan in Long-Life Mode, with no need to replace filters or lamps. With an application to operate up to 100 projectors simultaneously and with software included, the RICOH PJ UHL3660 UST Laser Projector delivers a highly adaptable, 4K quality solution in one package.

*OptiBright: Ricoh’s Twin Laser & Phosphor Combination Technology



The smart projector that delivers 4K quality and richer colour

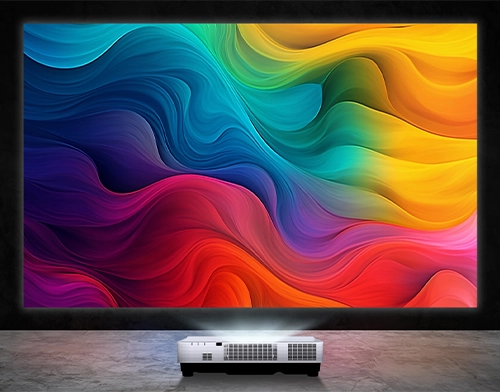

Ricoh ultra short throw laser projector rich colours

6,500 lumen brightness

One of the most powerful projectors in its category, it features 6,500 lumen brightness for visibly clearer, sharper image quality, even in brightly lit or large spaces.



Dynamic viewing experience

4-way pixel shift delivers 4K Ultra High-Definition resolution. High Dynamic Range and High Contrast mode enables enhanced realism and a more dynamic, life-like viewing experience.



Higher brightness from a compact unit

The unique OptiBright* technology has two laser lights beamed through two phosphor wheels. And with increased green levels within these wheels, the result is higher brightness with lower power consumption and a longer product life.



Greater colour richness than comparable projectors

This projector offers 1,073 million colour reproduction. RICOH’s unique NCE (Natural Colour Enhancement) technology creates an extremely rich and vivid colour range beyond the capabilities of most other projectors in this class.



Exceptionally large images in limited spaces

With a throw ratio of 0.24, its Ultra Short Throw Lens is capable of projecting an 85-inch image from just 1cm away (from the edge of unit) and up to a maximum image size of 160 inches – or just over 4 metres.



Highly adaptable projection effects

More than a meeting room projector. Whether rotated through 360 degrees or mounted on its side, it delivers peak projection performance suitable for floors, ceiling or walls.



Adjusts to challenging projection surfaces

With a range of keystone and geometric image correction features including vertical, horizontal, four corners and six-point correction, plus up to 1,891-point grid adjustment, it’s perfect for uneven, angled and unusual projection surfaces.



Unrestricted connectivity and ease of use

Offers HDBaseT wired and Miracast wireless connectivity. Where space is limited, simply key in the projector’s IP address to control it wirelessly from a PC or smartphone. Its remote controller lets you easily adjust the motorised focus.



Schedule events automatically

Using the device’s scheduling function, the projector can be pre-programmed to execute a series of events at specific times or dates automatically.



Constant use in challenging environments

This robust projector is ideal for constant use in tough environments. Designed to operate in ambient temperatures of up to 45 degrees Celsius and is dust-proofed to IP6X, ideal for entertainment and covered outdoor venues.



Safe for public spaces

Minimal space is required between the device and its projection surface, ideal for store signage, display or in conference halls with large crowds. If someone gets close an eye safety shut-off feature temporarily powers the unit down.



Combine multiple projectors

Built-in Multi Projection software with edge blending enables projectors to be combined to achieve larger images or displays along walkways, in exhibitions or around conference venue walls.



Immersive sound

With two 3 Watt speakers and a 5 Watt bass speaker built in, the projector delivers immersive audio, ideal for public events.



Up to 40,000 operational hours

In long-life mode, its OptiBright* technology sends power to each of its laser light modules alternatively. This enables it to operate for up to 40,000 hours – the equivalent of almost 5,000 8-hour working days – reducing the cost of ownership and replacement.



No parts to replace

Dust-proofed to IP6X, it’s designed for constant 24/7 use without the need to replace filters or lamps. Meaning uninterrupted image display with lower running costs.



Everything you need in one package

Up to 100 projectors can be managed simultaneously via the operational management application, for functions such as monitoring, geometric correction, remote control and network camera display. All the software required is included.



OptiBright logo*OptiBright: Ricoh’s Twin Laser & Phosphor Combination Technology

Product Name RICOH PJ UHL3660
Security Link to PSTI Compliance Statement
Projection system DLP
Chip size 0.65"
Brightness 6,500lm
Contrast ratio 5,000,000:1
Light source Laser
Life time of light source (*1) 20,000 hours (Constant Power mode)
26,000 hours (Constant Luminance mode) (*2)
30,000 hours (Eco mode) (*2)
40,000 hours (Long Life mode) (*2)
Projection size 85-160inch
Projection distance 0.01 - 0.38m (from the edge of unit)
Throw ratio 0.241
Resolution 3840*2160 (4K)
Colour reproduction 1,073 million colours
Focus Motorised
Keystone Horizontal: ±15° / Vertical: -20 ∼ +5°
4 corner correction Supported
6 point correction Supported
Grid adjustment Max. 61 x 31 points
Portrait / 360 degree projection Supported
Interfaces Input HDMI 2 x Type-A (HDMI 2.0 / HDCP 2.2)
HDBaseT 1 x RJ45 (*3)
USB 1 x Type-A
Wireless projection Miracast supported
Output HDMI 1 x Type-A (HDMI 2.0 / HDCP 2.2)
Audio 1 x 3.5mm Mini jack
Power Out USB 1 x Type-A (5V/2A)
Control Wired LAN 1 x RJ45
RS-232C 1 x D-Sub 9 pin
USB 2 x Micro-B
Wired Remote 1x 3.5mm Mini jack
Noise Constant Power / Constant Luminance / Long Life mode : 36dB
Eco mode : 32dB
Dimension (WxDxH mm) - (without feet) 530 x 470 x 139
Weight Less than 11.9kg
Dust proof IP6X
24/7 operation Supported
Environment condition Operating temperature Constant Power 0~40°C(0 - 1,524m altitude) / 0~35°C(1,524 - 3,048m with High Altitude mode)
Eco 0~45°C(0 - 1,524m altitude) / 0~45°C(1,524 - 3,048m with High Altitude mode)
Humidity 20%~85% (non-condensing)
Power consumption Constant Power: 460W(100V)/460W(110V)/445W(220V)/445W(240V)
Eco: 225W(100V)/225W(110V)/220W(220V)/220W(240V)
Standby: <0.5W
Speaker 2 x 3W, 1 x 5W

*1 Life time varies depending on environment condition of use.
*2 The brightness is lower than the Constant Power mode.
*3 HDMI and UART are supported, Ethernet is not supported.

*COMMISSION REGULATION (EU) 2019/2020: The light source of this product is not intended for applications other than image projection.
